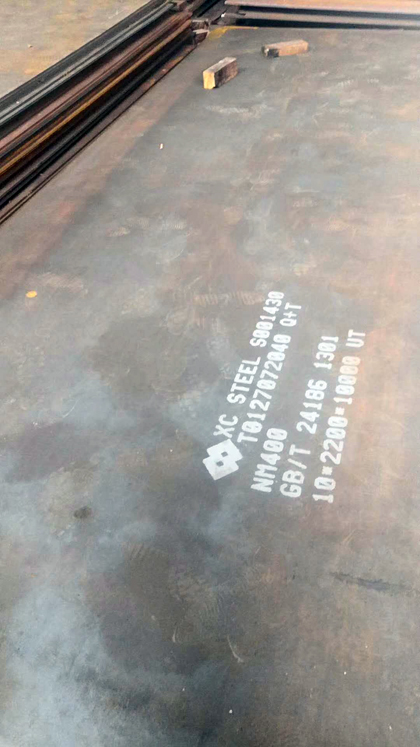

Wear Plate

Home > Mild Steel > Wear Steel >

Grade: HARDOX400,HARDOX450,HARDOX500,NM360,NM400,NM450,NM500,B-HARD400,B-HARD450,B-HARD500
Specification: (can customized by request)
Thickness: 1/8″ ~ 4″
Width*Length: 48″ x 96″~96″ x 288″

What Is Wear Plate ?

Wear plate also called abrasion resistant steel plate, AR steel plate, is a high-carbon alloy steel plate which is specifically designed for abrasion and wear resistant applications, such as underground mines, cement industry, road construction, mining and open-pit mining and metallurgical industries and manufacturing other wear-resistant parts. So now, wear steel is developed to have longer service life than mild steels.

Wear plate has a lower hardness of 360 – 444 BHN. As with other abrasion resistant steels, it does not have a defined chemistry, but rather, the grade of AR steel plate is determined by hardness.

Benefits of AR400 Steel Plate

When zeroing in on what abrasion resistant steel is best for your applications, it’s important to note that each grade reacts differently to many fabricating processes. AR steel plate like wear plate 450 and wear plate 500, is excellent for applications in which abrasion resistance, formability, weldability is a must. Abrasion resistant steel plate has great advantages in the following aspects:

Three times the strength as mild steel
Low cost
Reduces maintenance costs
Wear-resistant for temperatures under 250°C
Through-hardness

Grades of Wear Steel Plate

Steel Standard	Steel Grades
Sweden	HARDOX400	HARDOX450	HARDOX500	HARDOX600	SB-50	SB-45
Germany	XAR400	XAR450	XAR500	XAR600	Dillidur400V	Dillidur500V
Bao Steel	B-HARD360	B-HARD400	B-HARD450	B-HARD500
China	NM360	NM400	NM450	NM500
Finland	RAEX400	RAEX450	RAEX500
Japan	JFE-EH360	JFE-EH450	JFE-EH500	WEL-HARD400	WEL-HARD500
Belgium	QUARD400	QUARD450	QUARD500
France	FORA400	FORA500	Creusabro4800	Creusabro8000

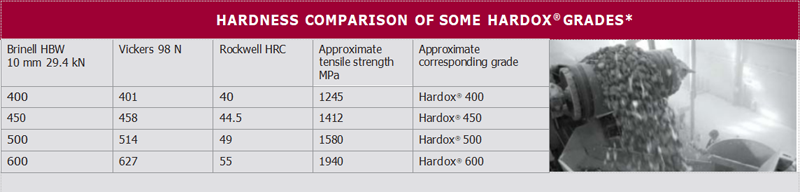

From the chart, we can see Hardox Steel plate is international well known wear resistant steel brand, it is specified into HARDOX400, HARDOX450, HARDOX500, HARDOX600, SB-50, SB-45, it has very well abrasion resistance property for common uses and special applications.

Applications of Wear Resistant Plate

Construction Machinery: Road paver screed/ transport board /excavator/loader bucket blade plate/ bulldozer & bulldozing plate/grader blade/Asphalt concrete mixing plant liner and blade/tunnel construction equipment, and All kinds of grab, ship unloader and material conveyor etc.
Mining Machinery: Front loader /Dump truck /Buffer bin /Rail road car /Discharge site /Transfer chute /Feeder /Screener /Crusher /Conveyor/Measuring bin /Skip
Metallurgical Machinery: Dump Truck Liners/ Material Transfer Chute Liners/ Storage Bin Liners/ Bucket Liners/ Hoppers
Thermal Power Plant :Pulverizer lining, bucket wheel, coal hopper, pulverized coal conveying pipe, coal powder distributor grating, coal unloading equipment liner and so on.

Wear Resistant Steel Plate Properties

Chemical Composition(Max):

Material	C	Si	Mn	P	S	Cr	Ni	Mo	Ti	Bt	Als	CEV
NM300	0.23	0.70	1.60	0.025	0.015	0.70	0.50	0.40	0.050	0.0005-0.0006	0.010	0.45
NM360	0.25	0.70	1.60	0.025	0.015	0.80	0.50	0.50	0.050	0.0005-0.0006	0.010	0.48
NM400	0.30	0.70	1.60	0.025	0.010	1.00	0.70	0.50	0.050	0.0005-0.0006	0.010	0.55
NM450	0.35	0.70	1.70	0.025	0.010	1.10	0.80	0.55	0.050	0.0005-0.0006	0.010	0.60
NM500	0.38	0.70	1.70	0.020	0.010	1.20	1.00	0.65	0.050	0.0005-0.0006	0.010	0.65
NM550	0.38	0.70	1.70	0.020	0.010	1.20	1.00	0.70	0.050	0.0005-0.0006	0.010	0.72
NM600	0.38	0.70	1.90	0.020	0.010	1.50	1.00	0.70	0.050	0.0005-0.0006	0.010	0.76

Mechanical Properties:

Material	Tensile MPA	Elongation %	Impact energy -20ºC	HBW
NM300	≥1000	≥14	≥24	270-300
NM360	≥1100	≥12	≥24	330-390
NM400	≥1200	≥10	≥24	370-430
NM450	≥1250	≥7	≥24	420-480
NM500	≥1250	≥7	≥24	≥470
NM550	≥1250	≥7	≥24	≥530
NM600	≥1250	≥7	≥24	≥570

Mechanical Properties of AR400 Wear Plate

Brinnell Hardness – 400/440 BHN
Tensile Strength – 180,000 PSI
Yield Strength – 140,000 PSI
Grain Type – Temp. Martensite
Carbon Equivalency – .47
Elongation– 15%
Reduction of Area – 60%

In addition to its general characteristics of being formable, while maintaining good abrasion resistance, AR400 steel plate also has the following mechanical properties levels:

Machining = Fair
Bending = Good
Corrosion Resistance = Good
Welding = Excellent
Wear Resistance = Great
Excellent resistance to both impact and sliding abrasion at a moderate cost.
Recommended for: liners for mining and material handling equipment like dump trucks, material transfer chutes, storage bins, buckets, and hopper
.125"-.315 offered in 48"-65" wide cut to your requested length
.375”-2.00” offered in standard sizes (96" X 240"/288”)

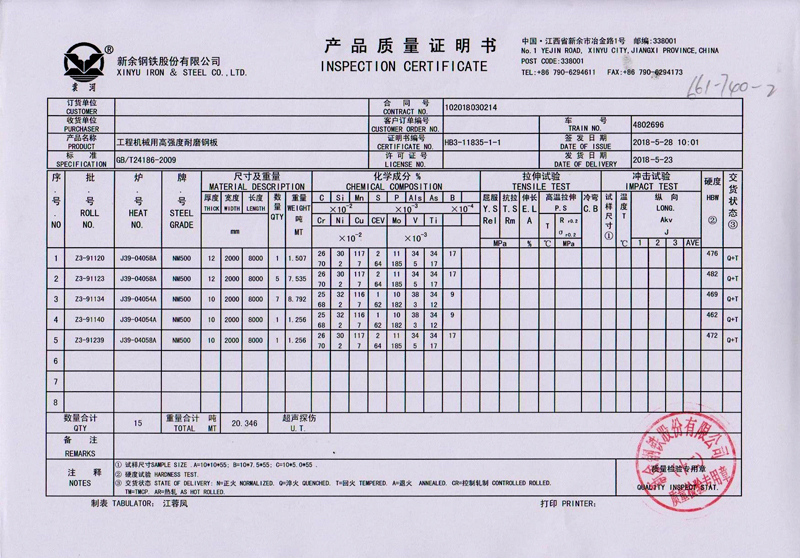

Inspection Certificate of Abrasion Resistant Steel Plate

Download
