api 5l pipe lines

API 5L A106 grade b pipe line with grade X42,X52,X60

What’s line pipe

Line pipe, one kind of steel pipe that is specilized in transporting oil, gas, water for petroleum and natural gas industry.

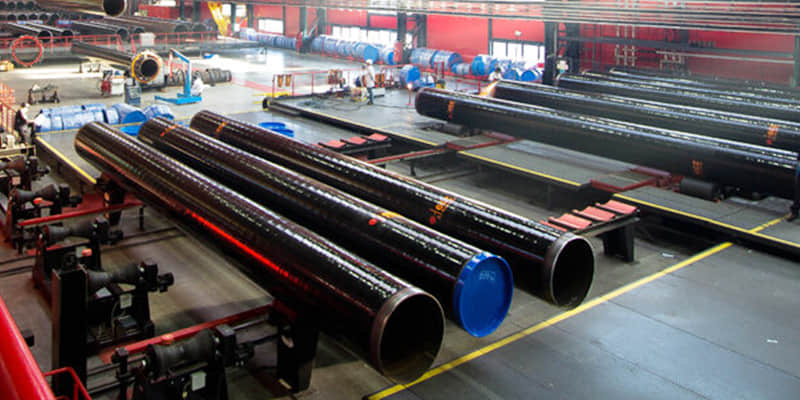

API 5L pipeline A

API 5L is the most popular standard for line pipe developed by Amercian Petroleum Institute. At the same time, ISO3183 and GB/T 9711 are international standard and Chinese standard for line pipe separately. We can manufacture line pipes according to all the three mentioned standards.

Seamless line pipes are made of round bars, and welded line pipes are made of steel sheets. Because of the manufacturing process, the out diameter of Seamless line pipe is normally small, like between 21.3mm-323..9mm, while the outer diameter of welded line pipes can be small like 21.3mm, and big up to 3500mm.

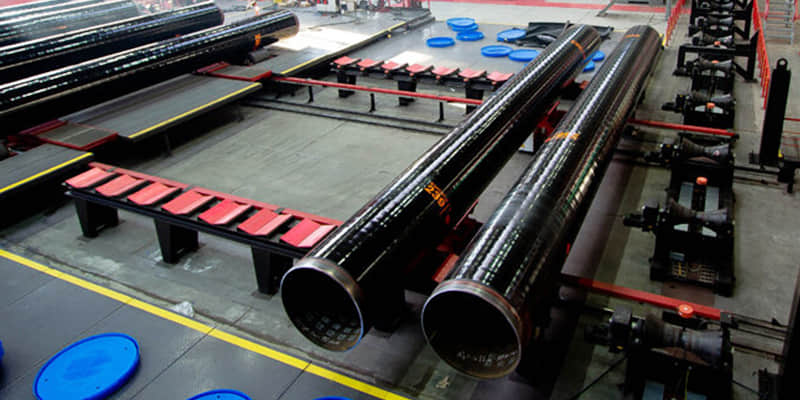

API 5l grade b line pipe

AHL STEEL provide qualified seamless and welded line pipes according to standand of API 5L, ISO 3183, and GB/T 9711.

Classification per production method

  • Seamless
  • Welded

Classification per welding method:

  • ERW
  • SAWL
  • SSAW

Size scope:

Type OD Thickness
SEAMLESS: Ø33.4-323.9mm (1-12 in) 4.5-55mm
ERW: Ø21.3-609.6mm (1/2-24 in) 8-50mm
SAWL: Ø457.2-1422.4mm (16-56 in) 8-50mm
SSAW: Ø219.1-3500mm (8-137.8 in) 6-25.4mm

Equivalent grades

Standard Grade
API 5L A25 Gr A GrB X42 X46 X52 X56 60 65 70
GB/T 9711
ISO 3183
L175 L210 L245 L290 L320 L360 L390 L415 L450 L485

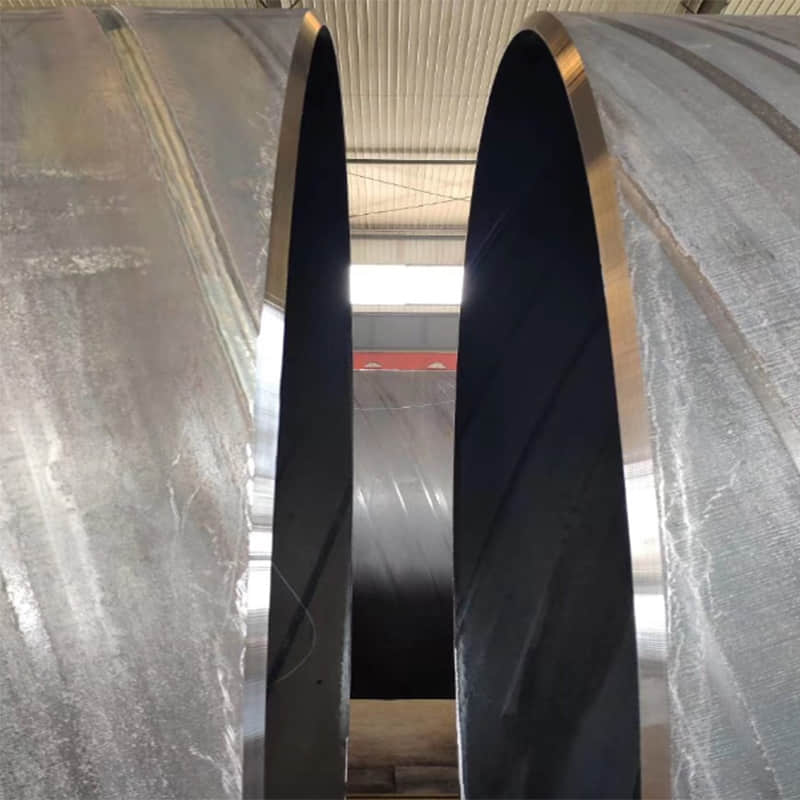

End details:

X60 api line pipe detail

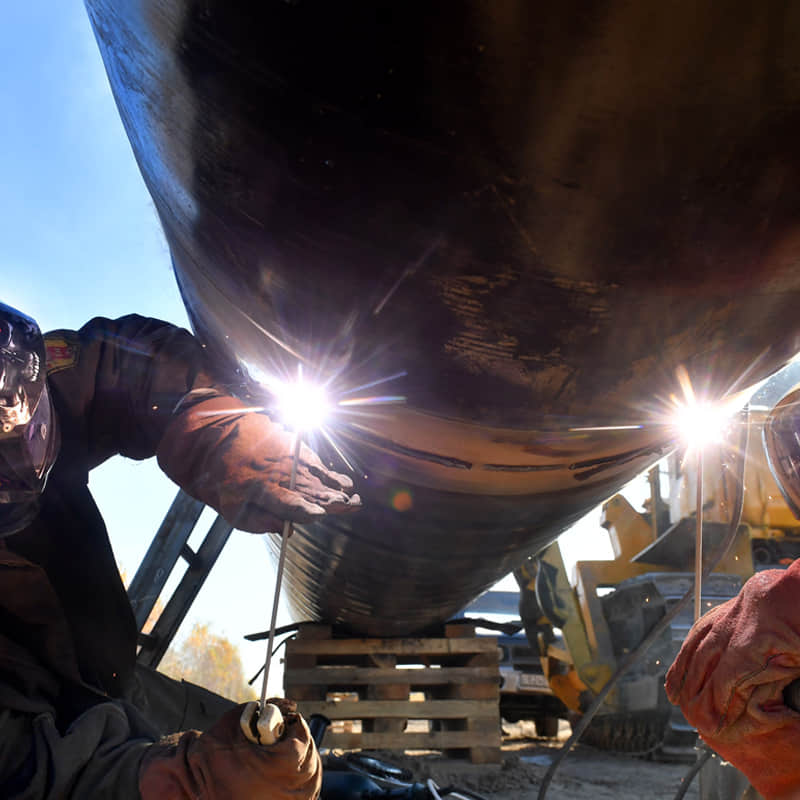

pipe line welding

Chemical composition:

Chemical Composition for PSL 1 pipe with t ≤ 0.984”

Steel Grade Mass fraction, % based on heat and product analyses a,g
C Mn P S V Nb Ti
max b max b max max max max max
Seamless Pipe
A 0.22 0.9 0.3 0.3
B 0.28 1.2 0.3 0.3 c,d c,d d
X42 0.28 1.3 0.3 0.3 d d d
X46 0.28 1.4 0.3 0.3 d d d
X52 0.28 1.4 0.3 0.3 d d d
X56 0.28 1.4 0.3 0.3 d d d
X60 0.28 e 1.40 e 0.3 0.3 f f f
X65 0.28 e 1.40 e 0.3 0.3 f f f
X70 0.28 e 1.40 e 0.3 0.3 f f f
Welded Pipe
A 0.22 0.9 0.3 0.3
B 0.26 1.2 0.3 0.3 c,d c,d d
X42 0.26 1.3 0.3 0.3 d d d
X46 0.26 1.4 0.3 0.3 d d d
X52 0.26 1.4 0.3 0.3 d d d
X56 0.26 1.4 0.3 0.3 d d d
X60 0.26 e 1.40 e 0.3 0.3 f f f
X65 0.26 e 1.45 e 0.3 0.3 f f f
X70 0.26e 1.65 e 0.3 0.3 f f f
  • a. Cu ≤ = 0.50% Ni; ≤ 0.50%; Cr ≤ 0.50%; and Mo ≤ 0.15%,
  • b. For each reduction of 0.01% below the specified maximum concentration for carbon, an increase of 0.05% above the specified maximum concentration for Mn is permissible, up to a maximum of 1.65% for grades ≥ L245 or B, but ≤ L360 or X52; up to a maximum of 1.75% for grades > L360 or X52, but < L485 or X70; and up to a maximum of 2.00% for grade L485 or X70.,
  • c. Unless otherwise agreed NB + V ≤ 0.06%,
  • d. Nb + V + TI ≤ 0.15%,
  • e. Unless otherwise agreed.,
  • f. Unless otherwise agreed, NB + V = Ti ≤ 0.15%,
  • g. No deliberate addition of B is permitted and the residual B ≤ 0.001%

Chemical Composition for PSL 2 pipe with t ≤ 0.984”

Steel Grade Mass fraction, % based on heat and product analyses Carbon Equivalent
C Si Mn P S V Nb Ti Other CE IIW CE Pcm
max b max max b max max max max max max max
Seamless Pipe
BR 0.24 0.4 1.2 0.025 0.015 c c 0.04 e,l 0.43 0.25
X42R 0.24 0.4 1.2 0.025 0.015 0.06 0.05 0.04 e,l 0.43 0.25
BN 0.24 0.4 1.2 0.025 0.015 c c 0.04 e,l 0.43 0.25
X42N 0.24 0.4 1.2 0.025 0.015 0.06 0.05 0.04 e,l 0.43 0.25
X46N 0.24 0.4 1.4 0.025 0.015 0.07 0.05 0.04 d,e,l 0.43 0.25
X52N 0.24 0.45 1.4 0.025 0.015 0.1 0.05 0.04 d,e,l 0.43 0.25
X56N 0.24 0.45 1.4 0.025 0.015 0.10f 0.05 0.04 d,e,l 0.43 0.25
X60N 0.24f 0.45f 1.40f 0.025 0.015 0.10f 0.05f 0.04f g,h,l As agreed
BQ 0.18 0.45 1.4 0.025 0.015 0.05 0.05 0.04 e,l 0.43 0.25
X42Q 0.18 0.45 1.4 0.025 0.015 0.05 0.05 0.04 e,l 0.43 0.25
X46Q 0.18 0.45 1.4 0.025 0.015 0.05 0.05 0.04 e,l 0.43 0.25
X52Q 0.18 0.45 1.5 0.025 0.015 0.05 0.05 0.04 e,l 0.43 0.25
X56Q 0.18 0.45f 1.5 0.025 0.015 0.07 0.05 0.04 e,l 0.43 0.25
X60Q 0.18f 0.45f 1.70f 0.025 0.015 g g g h,l 0.43 0.25
X65Q 0.18f 0.45f 1.70f 0.025 0.015 g g g h,l 0.43 0.25
X70Q 0.18f 0.45f 1.80f 0.025 0.015 g g g h,l 0.43 0.25
X80Q 0.18f 0.45f 1.90f 0.025 0.015 g g g i,j As agreed
X90Q 0.16f 0.45f 1.9 0.02 0.01 g g g j,k As agreed
X100Q 0.16f 0.45f 1.9 0.02 0.01 g g g j,k As agreed
Welded pipe
BM 0.22 0.45 1.2 0.025 0.015 0.05 0.05 0.04 e,l 0.43 0.25
X42M 0.22 0.45 1.3 0.025 0.015 0.05 0.05 0.04 e,l 0.43 0.25
X46M 0.22 0.45 1.3 0.025 0.015 0.05 0.05 0.04 e,l 0.43 0.25
X52M 0.22 0.45 1.4 0.025 0.015 d d d e,l 0.43 0.25
X56M 0.22 0.45f 1.4 0.025 0.015 d d d e,l 0.43 0.25
X60M 0.12f 0.45f 1.60f 0.025 0.015 g g g h,l 0.43 0.25
X65M 0.12f 0.45f 1.60f 0.025 0.015 g g g h,l 0.43 0.25
X70M 0.12f 0.45f 1.70f 0.025 0.015 g g g h,l 0.43 0.25
X80M 0.12f 0.45f 1.85f 0.025 0.015 g g g i,j .043f 0.25
X90M 0.1 0.55f 2.10f 0.02 0.01 g g g i,j 0.25
X100M 0.1 0.55f 2.10f 0.02 0.01 g g g i,j 0.25
  • a. SMLS t>0.787”, CE limits shall be as agreed. The CEIIW limits applied fi C > 0.12% and the CEPcm limits apply if C ≤ 0.12%,
  • b. For each reduction of 0.01% below the specified maximum for C, an increase of 0.05% above the specified maximum for Mn is permissible, up to a maximum of 1.65% for grades ≥ L245 or B, but ≤ L360 or X52; up to a maximum of 1.75% for grades > L360 or X52, but < L485 or X70; up to a maximum of 2.00% for grades ≥ L485 or X70, but ≤ L555 or X80; and up to a maximum of 2.20% for grades > L555 or X80.,
  • c. Unless otherwise agreed Nb = V ≤ 0.06%,
  • d. Nb = V = Ti ≤ 0.15%,
  • e. Unless otherwise agreed, Cu ≤ 0.50%; Ni ≤ 0.30% Cr ≤ 0.30% and Mo ≤ 0.15%,
  • f. Unless otherwise agreed,
  • g. Unless otherwise agreed, Nb + V + Ti ≤ 0.15%,
  • h. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 0.50% Cr ≤ 0.50% and MO ≤ 0.50%,
  • i. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.50% and MO ≤ 0.50%,
  • j. B ≤ 0.004%,
  • k. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.55% and MO ≤ 0.80%,
  • l. For all PSL 2 pipe grades except those grades with footnotes j noted, the following applies. Unless otherwise agreed no intentional addition of B is permitted and residual B ≤ 0.001%.

Mechanical property of API 5l:

Requirements for the results of Tensile Tests For PSL 1 Pipe

Pipe Grade Yield Strength a Tensile Strength a Elongation Tensile Strength b
Rt0,5 PSI Min Rm PSI Min (in 2in Af % min) Rm PSI Min
A 30,500 48,600 c 48,600
B 35,500 60,200 c 60,200
X42 42,100 60,200 c 60,200
X46 46,400 63,100 c 63,100
X52 52,200 66,700 c 66,700
X56 56,600 71,100 c 71,100
X60 60,200 75,400 c 75,400
X65 65,300 77,500 c 77,500
X70 70,300 82,700 c 82,700
a. For intermediate grade, the difference between the specified minimum tensile strength and the specified minimum yield for the pipe body shall be as given for the next higher grade.
b. For the intermediate grades, the specified minimum tensile strength for the weld seam shall be the same as determined for the body using foot note a.
c. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation:
API equation
Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units
Axc   is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows
– For circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces.
– For full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
– For strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch)

Requirements for the results of Tensile Tests For PSL 2 Pipe

Pipe Grade Yield Strength a Tensile Strength a Ratio a,c Elongation Tensile Strength d
Rt0,5  PSI Min Rm  PSI Min R10,5IRm (in 2in) Rm (psi)
Minimum Maximum Minimum Maximum Maximum Minimum Minimum
BR, BN,BQ,BM 35,500 65,300 60,200 95,000 0.93 f 60,200
X42,X42R,X2Q,X42M 42,100 71,800 60,200 95,000 0.93 f 60,200
X46N,X46Q,X46M 46,400 76,100 63,100 95,000 0.93 f 63,100
X52N,X52Q,X52M 52,200 76,900 66,700 110,200 0.93 f 66,700
X56N,X56Q,X56M 56,600 79,000 71,100 110,200 0.93 f 71,100
X60N,X60Q,S60M 60,200 81,900 75,400 110,200 0.93 f 75,400
X65Q,X65M 65,300 87,000 77,600 110,200 0.93 f 76,600
X70Q,X65M 70,300 92,100 82,700 110,200 0.93 f 82,700
X80Q,X80M 80,.500 102,300 90,600 119,700 0.93 f 90,600
a. For intermediate grade, refer to the full API5L specification.
b. for grades > X90 refer to the full API5L specification.
c. This limit applies for pies with D> 12.750 in
d. For intermediate grades, the specified minimum tensile strength for the weld seam shall be the same value as was determined for the pipe body using foot a.
e. for pipe requiring longitudinal testing, the maximum yield strength shall be ≤ 71,800 psi
f. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation:
API equation
Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units
Axc   is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows
– For circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces.
–  For full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
–  For strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch
g. Lower values fo R10,5IRm may be specified by agreement
h. for grades > x90 refer to the full API5L specification.

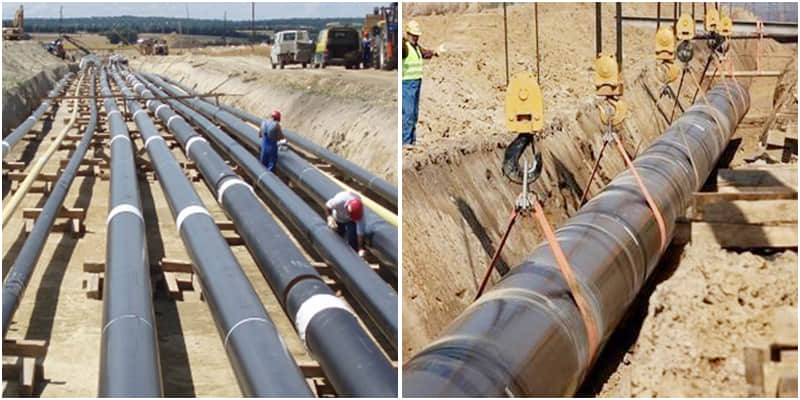

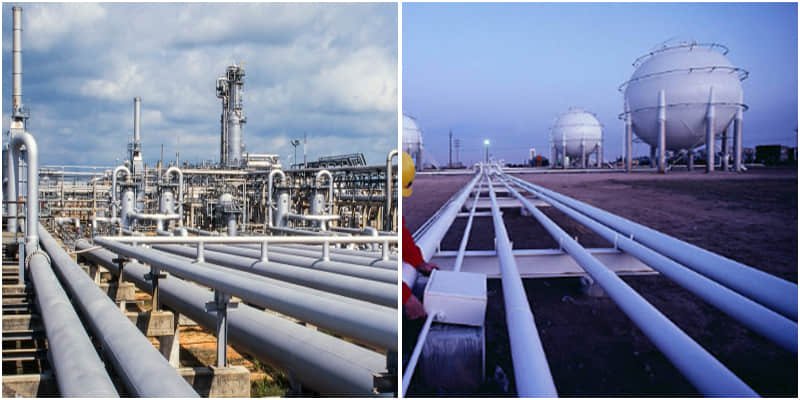

Application:

The line pipe is used for transportation of water, oil, and gas for petroleum and natural gas industry.

Api X42 application
Api X60 application
Api grade b application
pipeline application
