Corten Steel Sheet
What is CORTEN steel plate?
Corten steel, also known as weathering steel or atmospheric corrosion resistant steel, often referred to by the trademark COR-TEN® steel (sometimes written as Corten steel). The name COR-TEN® refers to the two distinguishing properties of this type of steel: CORrosion resistance and TENsile strength.
Corten steel plate or sheet, is a type of alloy steel plate. When uncoated exposed to the weather, Corten steel plates would rust and the rust forms a protective coating on the external surface which slows the rate of future corrosion, thus to prevent the steel material from acidic environments. The oxidation process of corten steel sheets is accelerating through subsequent exposure to dry and wet periods and also through sandblasting. As a result, corten steel plate has increased resistance to atmospheric corrosion when compared to other steels.
so, it is commonly used in outdoor applications or environments where normal steel would be inclined to rust.
Advantages of ANHUILONG Corten Steel Sheet
- Weather Resistance
AHL Corten steel has 4~8 times atmospheric corrosion resistance ability higher than ordinary steel.
- Weldability
AHL Corten steel plate can be welded using either manual, gas-shield or submerged arc welding method.
- Initial and Whole-life Cost Benefits
Cost savings from the elimination of any protective painting may much higher than the additional material costs. Meanwhile the minimal maintenance requirements of corten steel structures greatly reduce not only the direct costs of maintenance operations but also other indirect costs. The cost of weathering steel has been shown to be at least 5% lower than conventional painted steel alternatives in bridges using a HA Type 2 paint system.
- Attractive Appearance
The appearance of corten steel would always change with time, and create unique surface according to the surrounding environment, which makes the corten steel building attractive and charming.
- Speed up the Construction
The overall construction time would be reduced as both shop and painting operations are eliminated.
- Environmental Benefits
Corten steel avoid the volatile organic compounds from painting and the disposal of blast-cleaning debris from maintenance work in the future.
Applications of AHL Corten Steel Plate
Generally, due to the atmospheric corrosion resistance, excellent strength, durability and aesthetically-appealing appearance of corten steel plate, it is used wider and wider in varies of field.
Other landscape and garden applications please check our Home & Garden catalogue
The Best COR-TEN Steel Supplier
If you are looking to purchase CORTEN steel plates or sheets, our company is your best choice.
We have the most comprehensive and diverse corten steel products in stock as well as world leading manufacture process lines which allows customized production as your requirement.
With more than 20 years devoting to corten steel production, we are in expert position in corten steel industries for supreme quality and competitive price.
AHL STEEL also has the leading pre-rusted treatment technology.
No matter what kind of corten steel are you looking for, we are happy and welcome to receive your inquiry, and we will promise to provide our sincerely service.
AHL Corten Steel Panel Specifications:
Application | Construction |
---|---|
Thickness | 8-150mm |
Material | Corten Steel |
Grade |
Corten Steel Plate, A558, S355JOW, S355JOWP, S355J2W, Q235NH, Q295NH, Q355NH, Q460NH,Q550NH, Q295GNH, Q355GNH |
Shape | Plate |
Surface Treatment | MILLS FINISIH, PRE-RUSTED TREATMENT |
Application | Facade, planter, screen , fence, edging, fire pit, tree grate |
---|---|
Thickness | 0.5-20 mm |
Material | Corten Steel |
Grade | CORTEN A & B, A242, SPA-H, A606, S355JOW, S355JOWP, S355J2W |
Shape | Coil & sheet |
Surface Treatment | MILLS FINISIH, PRE-RUSTED TREATMENT |
Corten steel plates thickness is huge you can choose the one which is appropriate for your industries that looks better in-app factors. Talking about the length then it also comes in many starting from 2m to 12m etc. as a buyer you have lots of choices.
Comparison of Different Weathering Steel Grades
Material | Chemical Composition,% | ||||||||
---|---|---|---|---|---|---|---|---|---|
C | Si | Mn | P | S | Cu | Cr | Ni | V | |
Q235NH | ≤ 0.13 | 0.10-0.40 | 0.20-0.60 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / |
Q295NH | ≤0.15 | 0.10-0.50 | 0.60-1.00 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / |
Q295GNH | ≤ 0.12 | 0.10-0.40 | 0.20-0.50 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | 0.25-0.50 | / |
Q355NH | ≤ 0.16 | ≤ 0.50 | 0.50-1.50 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / |
Q355GNH | ≤ 0.12 | 0.20-0.75 | ≤ 1.00 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / |
09CuPCrNi-A | ≤ 0.12 | 0.20-0.75 | 0.20-0.50 | 0.060-0.12 | ≤ 0.020 | 0.25-0.50 | 0.30-1.25 | 0.12-0.65 | / |
09CuPCrNi-B | ≤ 0.12 | 0.10-0.40 | 0.20-0.50 | 0.060-0.12 | ≤ 0.020 | 0.25-0.50 | 0.30-0.65 | 0.25-0.50 | / |
05CuPCrNi | ≤ 0.090 | 0.25-0.50 | 0.20-0.50 | 0.060-0.12 | ≤ 0.020 | 0.25-0.50 | 0.30-1.25 | 0.12-0.65 | / |
B480GNQR | ≤ 0.12 | 0.25-0.75 | 0.20-0.50 | 0.070-0.15 | ≤ 0.030 | 0.25-0.55 | 0.30-1.25 | ≤ 0.65 | / |
Q450NQR1 | ≤ 0.12 | ≤ 0.75 | ≤ 1.50 | ≤ 0.025 | ≤ 0.020 | 0.20-0.55 | 0.30-1.25 | ≤ 0.65 | / |
SPA-H | 0.05-0.12 | 0.25-0.75 | 0.20-0.60 | 0.070-0.12 | ≤ 0.025 | 0.25-0.50 | 0.30-1.25 | ≤ 0.65 | / |
Cor-ten A | 0.15 | 0.25-0.75 | 0.20-0.50 | 0.07-0.15 | 0.03 | 0.25-0.55 | 0.50-1.25 | 0.65 | / |
Cor-ten B | 0.19 | 0.30-0.50 | 0.80-1.25 | 0.035 | 0.03 | 0.25-0.40 | 0.40-0.65 | 0.4 | 0.02-0.10 |
S355JOW | 0.16 | 0.5 | 0.50-1.50 | 0.035 | 0.035 | 0.25-0.55 | 0.4-0.8 | / | / |
S355JOWP | 0.12 | 0.75 | 1.00 | 0.06-0.15 | 0.035 | 0.25-0.55 | 0.30-1.25 | / | / |
S355J2W | 0.16 | 0.5 | 0.50-1.50 | 0.03 | 0.03 | 0.25-0.55 | 0.40-0.80 | / | / |
Material | Mechanical properties | ||||||||
---|---|---|---|---|---|---|---|---|---|
Yield Strength N/mm² min | Tensile Stremgth N/mm² | Elongation % min | |||||||
≤ 16 | 16-40 | 40-60 | >60 | ≤ 16 | 16-40 | 40-60 | >60 | ||
Q235NH | 235 | 225 | 215 | 215 | 360-510 | 25 | 25 | 24 | 23 |
Q295NH | 295 | 285 | 275 | 255 | 430-560 | 24 | 24 | 22 | |
Q295GNH | 295 | 345 | / | / | 430-560 | 24 | 24 | /23 | / |
Q355NH | 355 | 345 | 335 | 325 | 490-630 | 22 | 22 | 21 | 20 |
Q355GNH | 355 | 345 | / | / | 490-630 | 22 | 22 | / | / |
09CuPCrNi-A | ≥345 | ≥480 | ≥24 | ||||||
09CuPCrNi-B | ≥295 | ≥431 | ≥24 | ||||||
05CuPCrNi | ≥310 | ≥440 | ≥26 | ||||||
B480GNQR | ≥350 | ≥480 | ≥22 | ||||||
Q450NQR1 | ≥450 | ≥550 | ≤ 6: ≥22 | >6-14: ≥20 | ≥14: ≥19 | ||||
SPA-H | ≥355 | 490-610 | ≤ 6: ≥22 | >6-12: ≥ 15 | |||||
Cor-ten A | ≥345 | ≥485 | ≥20 | ||||||
Cor-ten B | ≥345 | ≥485 | ≥19 | ||||||
S355JOW | <16: ≥355 | >16-80: ≥ 345 | >80-100: ≥ 315 | >100-150: ≥ 295 | >3: 510-680 >3-100: 470-630 >100-150: 450-600 | ||||
S355JOWP | <16: ≥355 | >16-150: ≥ 345 | >3: 510-680 >3-100: 470-630 | ||||||
S355J2W | <16: ≥355 | >16-80: ≥ 345 | >80-100: ≥ 315 | >100-150: ≥ 295 | >3: 510-680 >3-100: 470-630 >100-150: 450-600 |

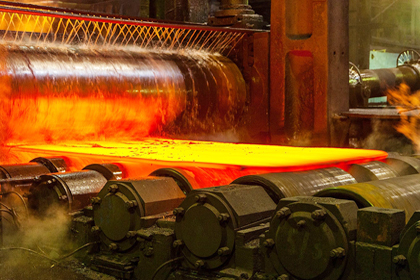

AHL COR-TEN Steel Sheet Production Process:
