stainless steel heat exchanger coil tubing

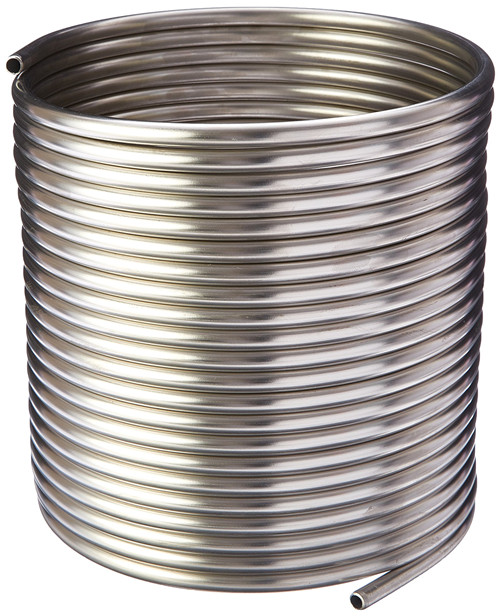

Stainless steel coil tubing

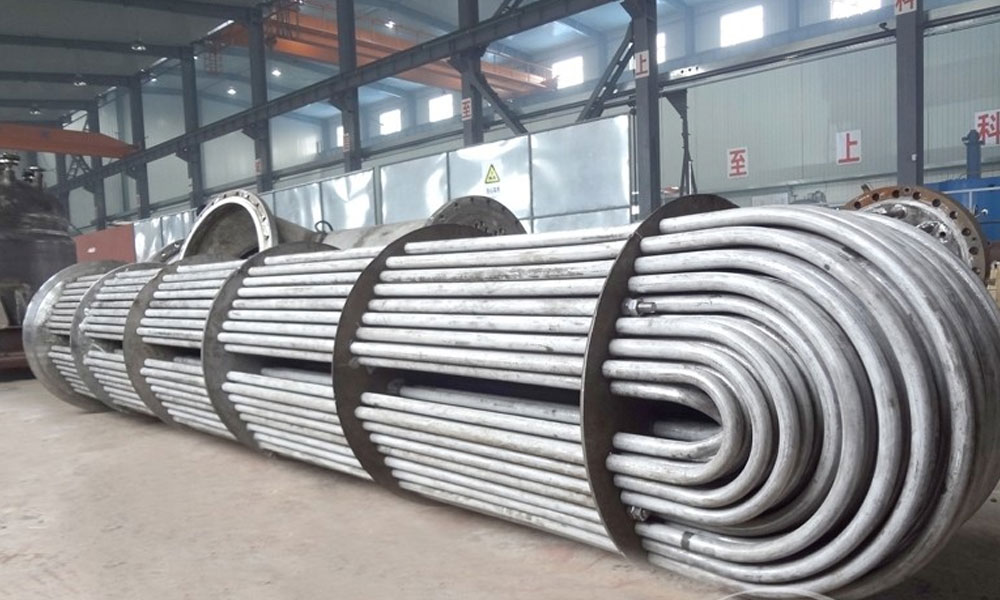

stainless steel heat exchanger tubes
Stainless steel coil tubing makes the long length tube installations possible without the need of joining fittings. AHL STEEL is a specialist for stainless steel coil tubing, having the expertise and techniques to meet stainless steel tubing bend service, all the stainless steel tubing is conducted in 100% tested at the appropriate pressure, tubing inner and outer surface is clean and smooth for packaging.

Stainless Steel Coil Tubing Applications

Coil tubing is used for wide range of applications, applied for cooling and heating transferring energy in corrosive and non normal temperature environment, like food and beverage, oil and gas, medicine industry and so on.

Application of Industrial stainless steel tubing coil

  • heat exchangers
  • boilers
  • oil
  • chemicals
  • fertilizers
  • chemical fiber
  • pharmaceutical
  • nuclear power
AHL STEEL is well known Stainless Steel Heat Exchanger Tube Suppliers in China and AHL STEEL heat exchanger tube has many characters of the good flexible, lightweight, corrosion resistance, fatigue resistance, resistance the high and low temperature.

Heat exchanger stainless steel

304 and 316 are the main material of heat exchanger Stainless Steel and their corrosion resistant can be used to meet various industrial, pharmaceutical, food, dairy, and beverage requirements. SS 316 Heat Exchanger tubes and SS 304 Heat Exchanger tubes formed with Heat Exchanger shape on outside surface.

Superior Tube heat exchanger products can be purchased as seamless, welded or welded and drawn tubes in a multitude of sizes ranging from 0.010” OD to 50.8mm OD

Stainless steel heat exchanger tube specification

Stainless Steel Heat Exchanger Tube Size Range 10 mm OD to 50.8 mm OD
Stainless Steel Heat Exchanger Tube Wall Thickness 0.60 mm to 8.00 mm
Stainless Steel Heat Exchanger Tube Length up to 2000 m Length & Custom Required Length
Stainless Steel Heat Exchanger Tube Tolerances OD: +/- 0.1mm, thickness: +/-10%, length: +5mm
Stainless Steel Heat Exchanger Tube Dimenisons ASTM, AISI, ASME, JIS, DIN, EN, GB, BS, SUS
Stainless Steel Heat Exchanger Tube Standard ASTM A 213, A 268, A 269, A 789, Equivalent to ASME, EN, JIS Etc.
Stainless Steel Heat Exchanger Tube Material SS 304, SS 304L,SS 316,SS 316L
