stainless steel straight perforated exhaust pipe/tube

Stainless Steel Perforated Pipe

Although people are usually overlooking the benefits of perforated stainless steel tubing, these valuable resources still play a key role in plenty of industries and applications area. One application for perforated steel pipe are in the exhaust systems from a wide range of vehicles. Stainless steel perforated pipe is great alternative for exhaust tubing of automotive applications. Owing to its excellent corrosive resistance and overall properties.

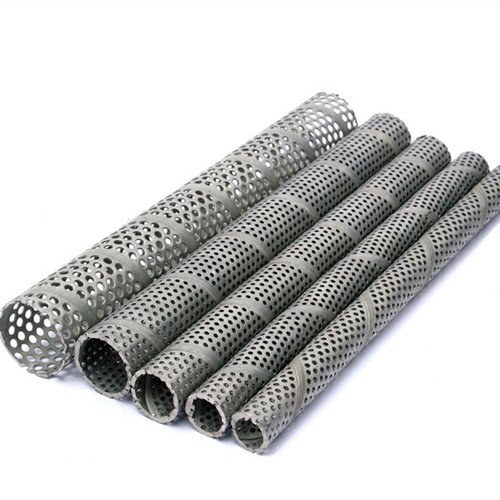

perforated stainless steel pipe

 Perforated Exhaust Tubes for Automobile

Exhaust tubes made of perforated steel are used for many cars models. You can seldom see the perforated tubes themselves alone, which might make it tough to identify exactly how they’re working. This kind of metal perforated pipe is specially made for cars exhaust tubing. AHL STEEL not only supply straight pipes and curved types of stainless steel perforated exhaust pipe, but also can offer stainless exhaust system kits. The major metal materials are 409, 436 or 304.

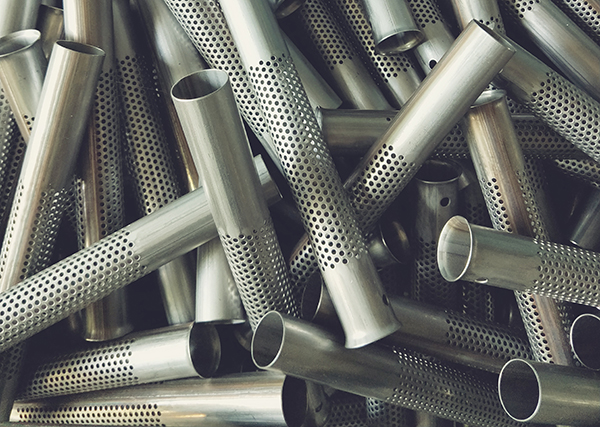

 exhaust perforated pipe

Product descriptions:

  • Great for motorcycle and auto muffler/exhaust projects
  • Material: Stainless steel 409, 436, 304, 316;
  • Outside diameter: 1", 1-1/4, 1-1/2", 1-5/8", 1-3/4",2", 2-1/4", 2-1/2", 3";
  • Length: 24", 48" or as required;
  • Hole diameter: 1/8";
  • Open area: up to 60%;
  • Wall thickness: 0.035"/ 22-gauge ;
  • Note: Margins, end forms and perforation patterns can be customized or specific.


Perforation pattern options:

  • Straight line;
  • Staggered;


Other Stainless Steel Perforated Tube Specification


Perforated stainless steel pipe are manufactured with various shapes of holes - round, slot, rectangular, square, hexagonal, oval, and plum blossom in straight or staggered pattern options. You can choose seamless or welded fabrication for your perforated pipe. Hole size can be customized according to your requirement.
OD. 19-550mm
Thickness 0.2mm to 15mm
Shapes of Holes round, slot, rectangular, square, hexagonal, oval, and plum blossom
Opening Diameter 0.2mm to 100m
Material SS304/304L,SS316/316L, 409/409L,436/436L,421,441, SS201
Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed
Packing Ends Capped, Wooden case
