Mild Steel / Boiler Steel Plate

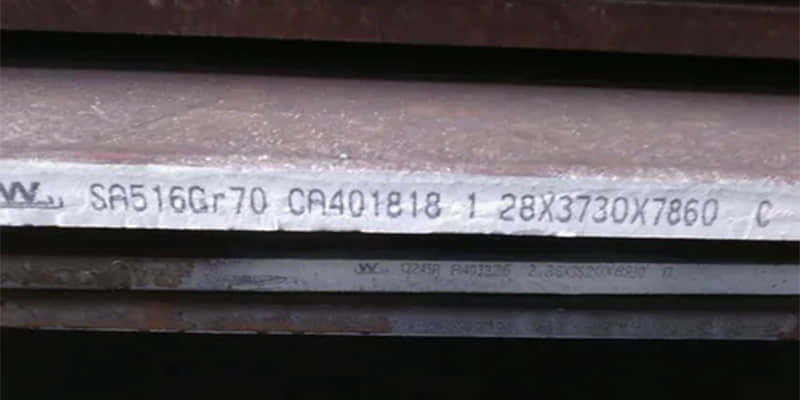

The ASTM sa 516 gr.70 plate, Sa516 gr 60 plate for boiler and pressure vessel

Sa516 gr 70

How much do you know about boiler steel

Boiler steel, also called pressure vessel steel, is designed to manufacturing steam boilers, pressure vessels and other pressure vessel structures. Because this kind of material bears certain air pressure and water pressure, as well as used in environments of different temperature, like high, medium, low temperature, the requirement for this kind of steel is more strict.

Classification:

Per Composition
  • Carbon Steel
  • Alloy Steel
Per Strength
  • High Pressure
  • Medium Pressure
  • Low Pressure
Per Temperature
  • High Temperature
  • Medium Temperature
  • Low Temperature

Heat treatment:

  • Normalizing
  • Annealing
  • Tempering + Normalizing
  • Quenching + tempering

AHL steel is specialized in all kinds of boiler and pressure vessel steel plates for various pressure and temperature requirements.

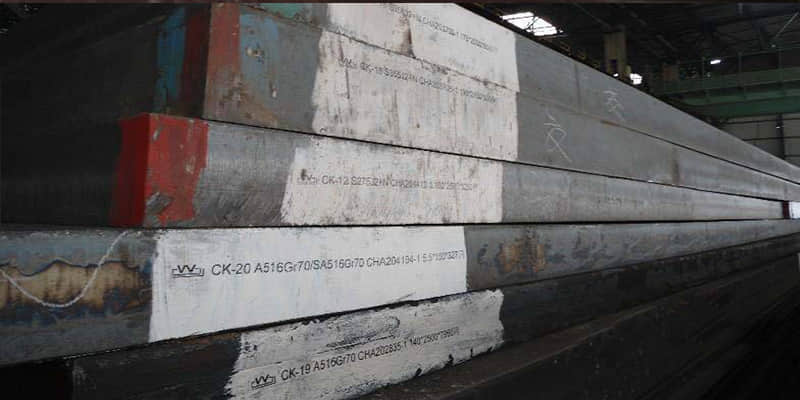

Boiler steel stocks

Raw material details:

Standard Grade
GB/T713-2014 Q245R, Q345R, Q370R, Q420R, 18MnMoNbR, 13MnNiMoR, 15CrMoR, 14Cr1MoR, 12Cr1MoVR,
12Cr2Mo1VR, 07Cr2AlMoR
ASTM A516/A516M-2017 A516 Gr55, A516 Gr 60, A516 Gr 65, A516 Gr 70
ASTM A515/A515M-2017 A515 Gr60, A515 Gr 65, A515 Gr 70
ASTM A387/A387M-2017 A387 Gr 2, A387 Gr 12, A387 Gr 11, A387 Gr 22, A387 Gr 22L, A387 Gr 11, A387 Gr 21,
A387 Gr 21L, A387 Gr 5, A387 Gr 9, A387 Gr 91
ASTM A202/A202M-2003 A202 Gr A, A202 Gr B
ASTM A203/A203M--2012 A203 Gr A, A203 Gr B, A203 Gr C, A203 Gr D, A203 Gr E, A203 Gr F
ASTM A204/A204M--2012 A204 Gr A, A204 Gr B, A204 Gr C
ASTM A285/A285M--2012 A285 Gr A, A285 Gr B, A285 Gr C
ASTM A299/A299M--2014 A299 Gr A, A299 Gr B
ASTM A302/A302M--2012 A302 Gr A, A302 Gr B, A302 Gr C, A302 Gr D
ASTM A387/A387M-2017 A387 Gr 2, A387 Gr 12, A387 Gr 11, A387 Gr 22, A387 Gr 22L, A387 Gr 21, A387 Gr 21L,
A387 Gr 5, A387 Gr 9, A387 Gr 91
ASTM A515/A515M-2017 A515 Gr60, A515 Gr 65, A515 Gr 70
ASTM A516/A516M-2017 A516 Gr55, A516 Gr 60, A516 Gr 65, A516 Gr 70
ASTM A517/A517M-2015 A517 Gr A, A517 Gr B, A517 Gr E, A517 Gr F, A517 Gr H,
A517 Gr P, A517 Gr Q, A517 Gr S
ASTM A533/A533M-2016 A533 Type A, A533 Type B, A533 Type C, A533 Type D, A533 Type E
ASTM A537/A537M-2019 A537 Class 1, A537 Class 2, A537 Class 3
ASTM A612/A612M-2019 -
ASTM A662/A612M-2012 A662 Gr A, A662 Gr B, A662 Gr C
EN 10028-2: 2017 P235GH, P265GH, P295GH, P365GH, 16Mo3, 18MnMo4-5, 20MnMoNi4-5, 15NiCuMoNb5-6-4,
13CrMo4-5, 13CrMoSi5-5, 10CrMo9-10, 12CrMo9-10, X12CrMo5, 13CrMoV9-10, 12CrMoV12-10,
X10CrMoVNb9-1
EN 10028-3: 2009 P275NH, P275NL1, P275NL2, P355N, P355NH, P355NL1, P355NL2, P460NH, P460NL1,
P460NL2
EN 10028-5: 2017 P355M, P355ML1, P355ML2, P420M, P420ML1, P420ML2, P460M, P460ML1, P460ML2
EN 10028-6: 2017 P355Q, P355QH, P355QL1, P355QL2, P460Q, P460QH, P460QL1, P460QL2, P500Q,
P500QH, P500L1, P500QL2,
P690Q, P690QH, P690L1, P690QL2
JIS G3103-2019 SB410, SB450, SB480
JIS G3115-2010 SPV235, SPV315, SPV355, SPV410, SPV450, SPV490
DN17155-1983 UHI, HI, HII, 17Mn4, 19Mn6, 15Mo3, 13CrMo44, 10CrMo 9 10

Q345r & Q245r Steel Plate Chemical Composition:

Material Grade C Si Si P S S
Q245R ≤0.20 ≤0.40 ≤0.40 ≤0.025 0.015 0.015
Q345R ≦0.20 ≦0.55 ≦0.55 ≦0.025 ≦0.015 ≦0.015

Q345R & Q245r Steel Plate Mechanical Property:

Material Grade Thickness Yield strength Tensile Strength Elongation Impact test
Q245R ≤16 >245 400-520 ≧25 >34
16≦36 >235
36≦60 >225
63≦100 >205 390-510 ≧24
80≦150 >185 380-500
Q345R ≤16 >345 510-640 ≧21 >34
16≦36 >325 500-630 ≧21
40≦60 >315 490-620 ≧21
63≦100 >305 490-620 ≧20
80≦150 >285 480-610 ≧20
100≦200 >265 470-600 ≧20

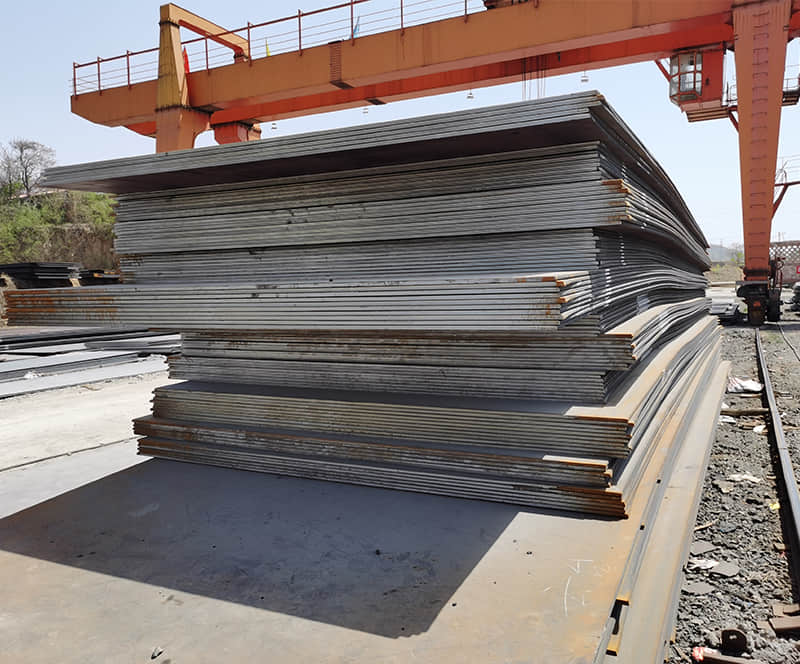

pressure vessel steel

Application field:

  • Petroleum
  • Chemical
  • Power Plant
  • Boiler & Pressure Vessel

Application products:

  • Reactor
  • Heat Exchanger
  • Separator
  • Spherical Tank
  • Nuclear Reactor Pressure Hull
  • Liquid Gas Tank
  • Oil & Gas Tank
  • Truck Tank
  • Boiler Drum
  • Turbine Volute

The material is widely used in petroleum, chemical, Power plant as reactor, heat exchanger, spherical tank, storage tank, truk tank, boiler trum, and so on that various pressure and temperature are required.

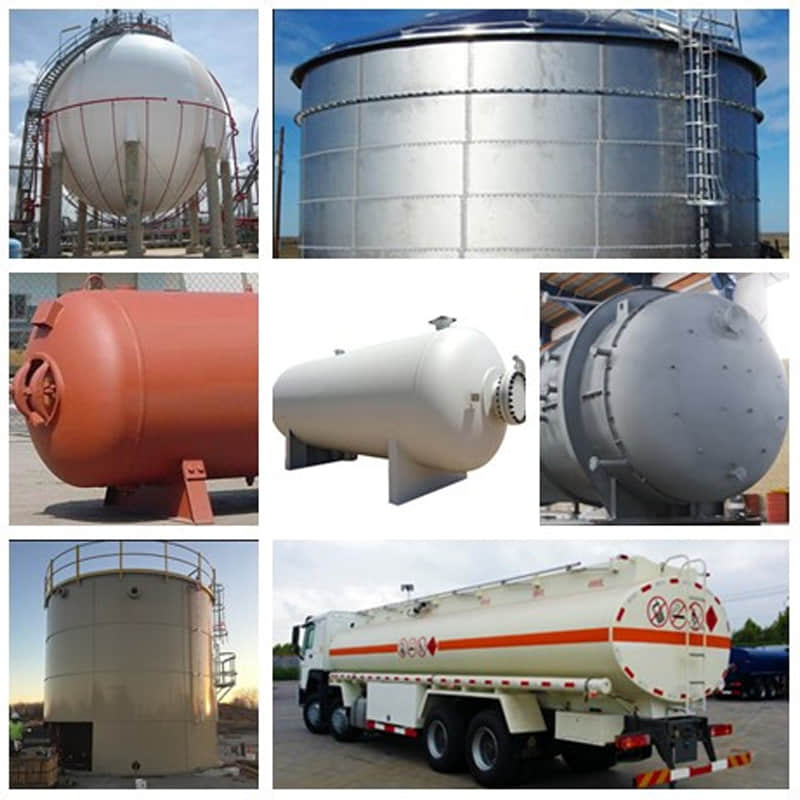

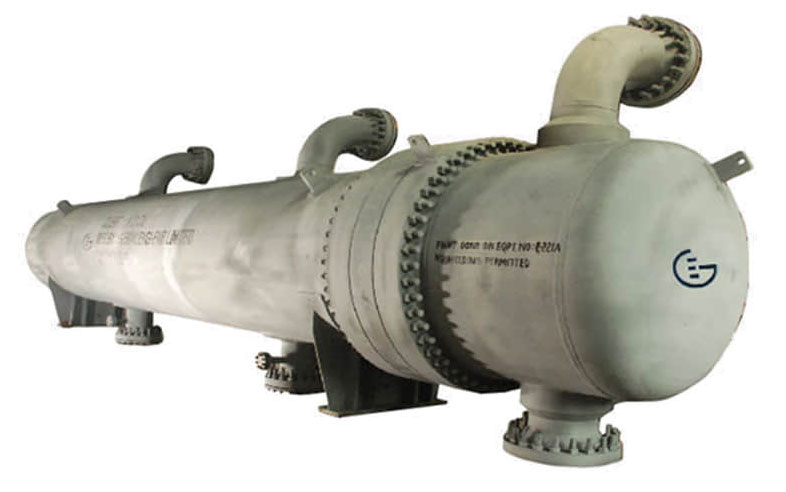

Vessel steel plate application  boiler steel plate Application

Packing & delivery

We provide qualified packing and suitable Transportation to keep the products safe and good, as well as accept cutomized packing method.

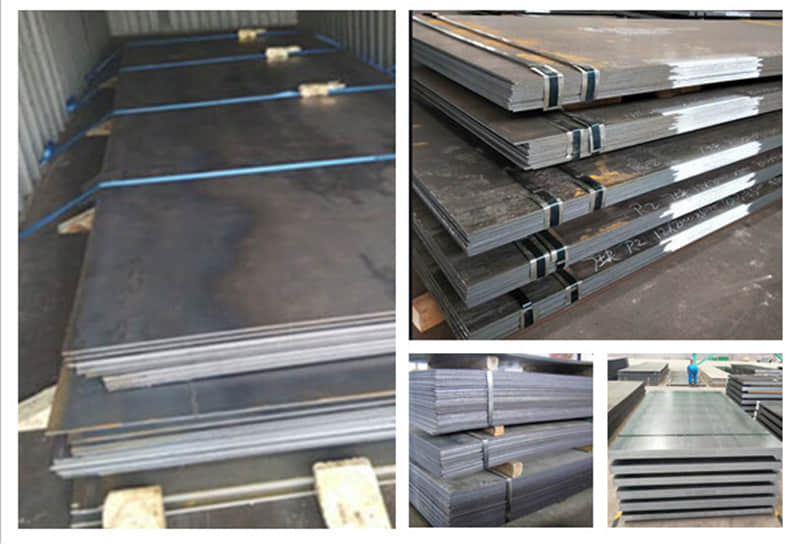

SA516 Gr70 plate packing
